The cantilever towers design features four A-shaped supports spaced across U.S. 26 and two over Cornelius Pass Road. Protective railings are translucent in the drawings. Materials, colors and connection details are not decided.

The series of tall cantilevered towers support a ribbon of girders and trusses floating over the roadways. The tower design echos the trussed utility transmission towers found nearby. This design creates a landmark for the key intersection in the Regional Trails network.

Download Option 4: Cantilever Towers (pdf)

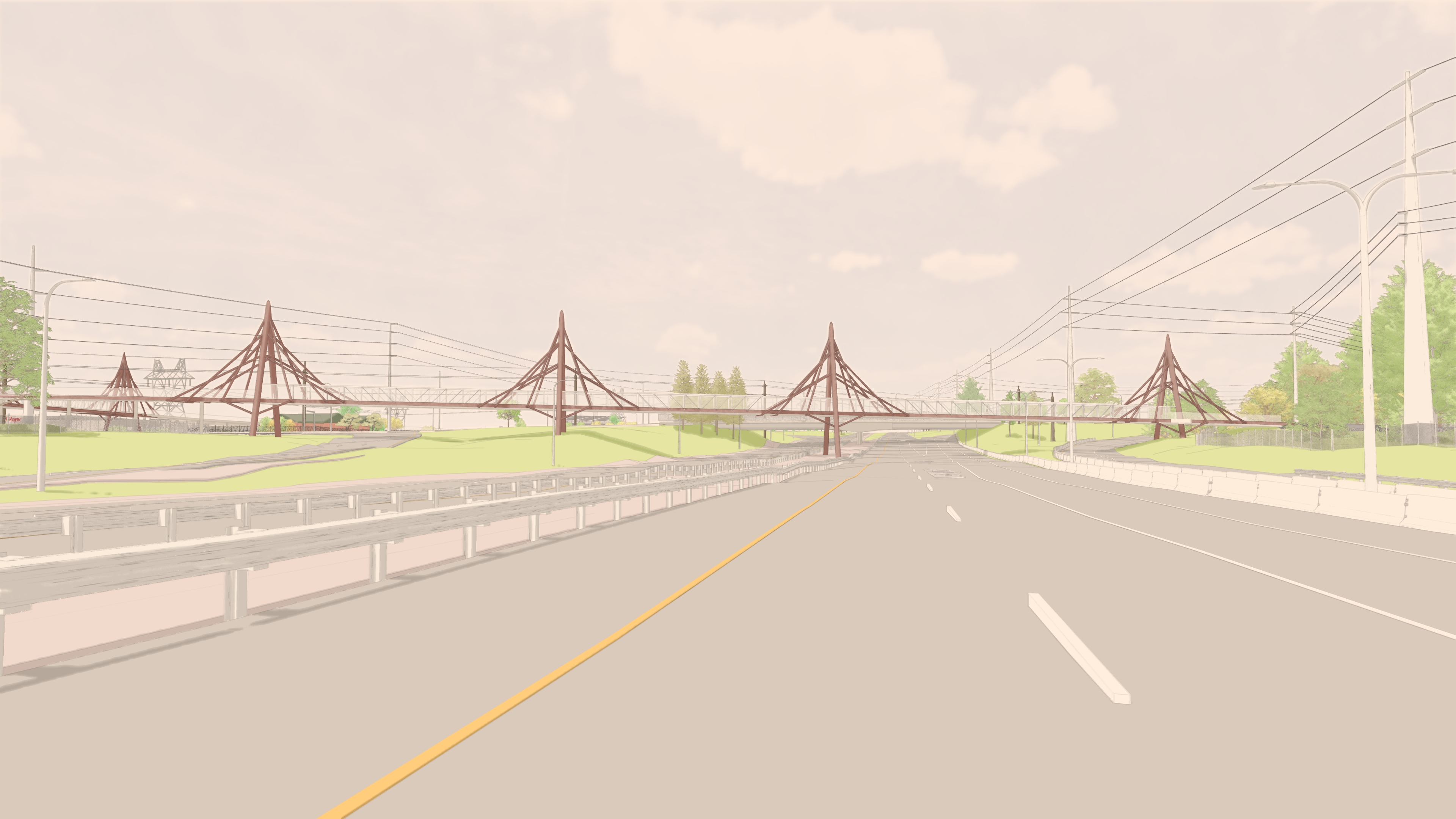

Drawing of bridge with cantilever towers over U.S. 26, viewed from westbound driver's perspective.

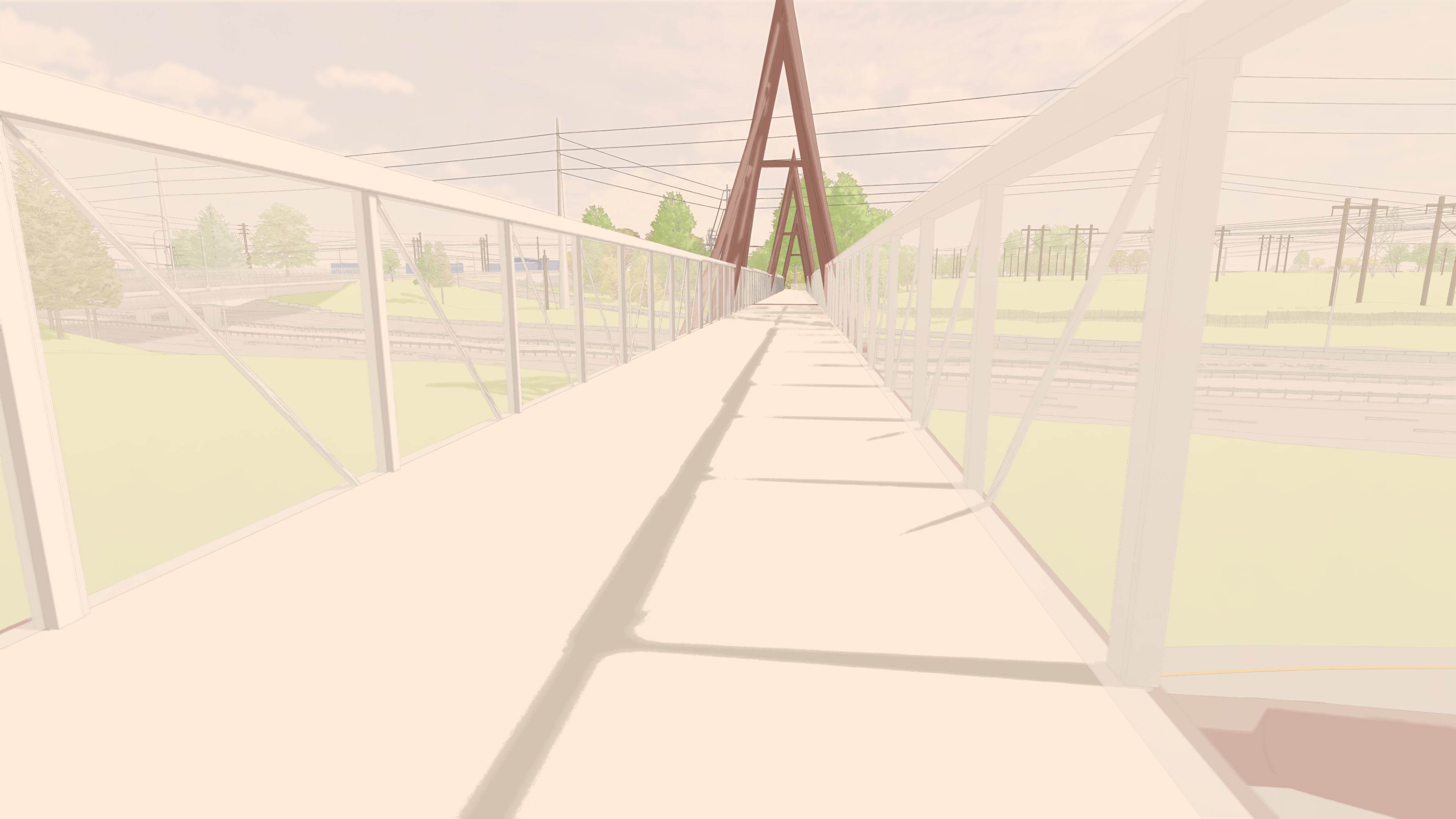

View of a bridge with cantilever towers over U.S. 26 from the perspective of someone using the proposed trail.

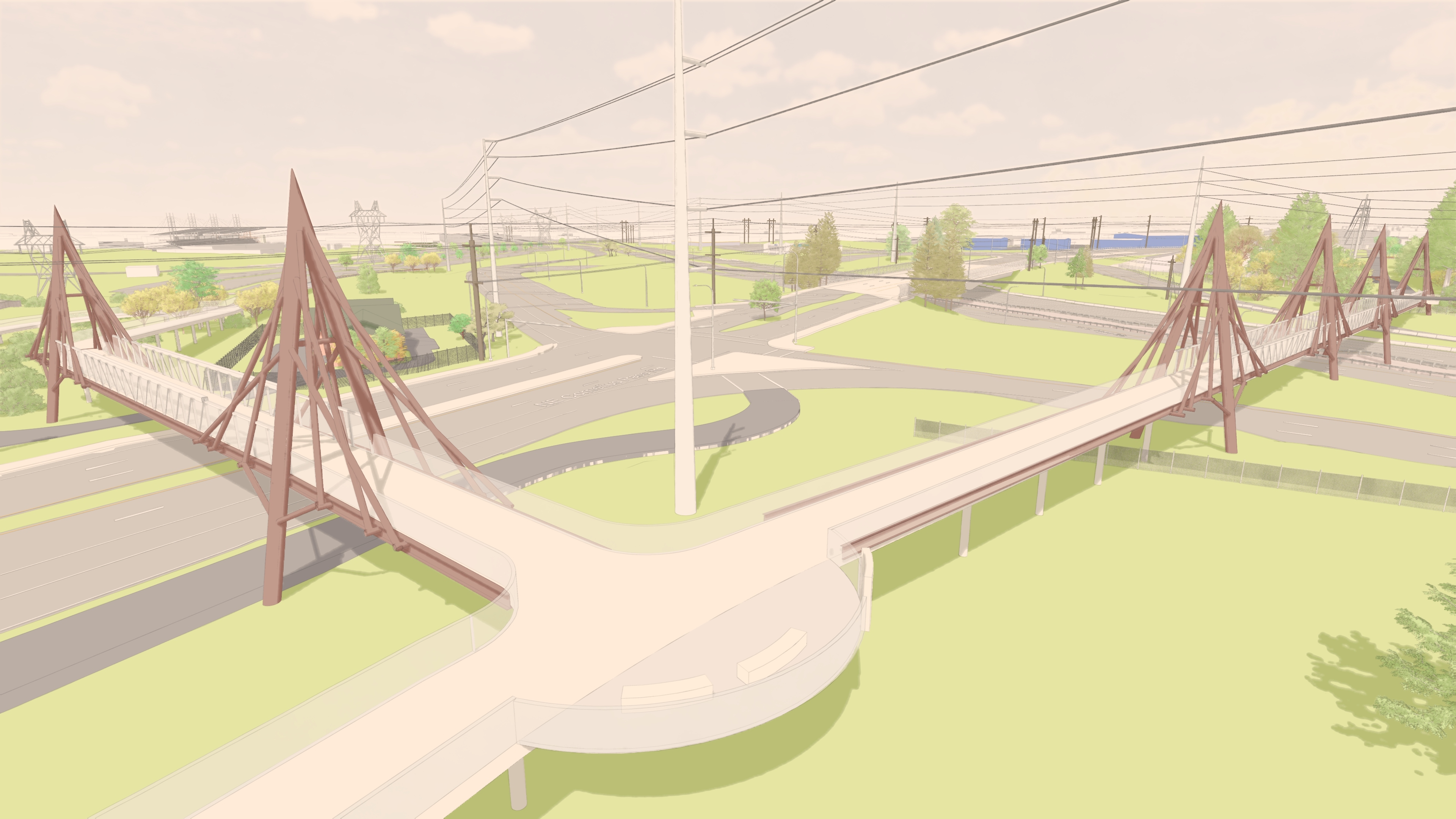

Aerial drawing of bridge with cantilever towers over Cornelius Pass Road.

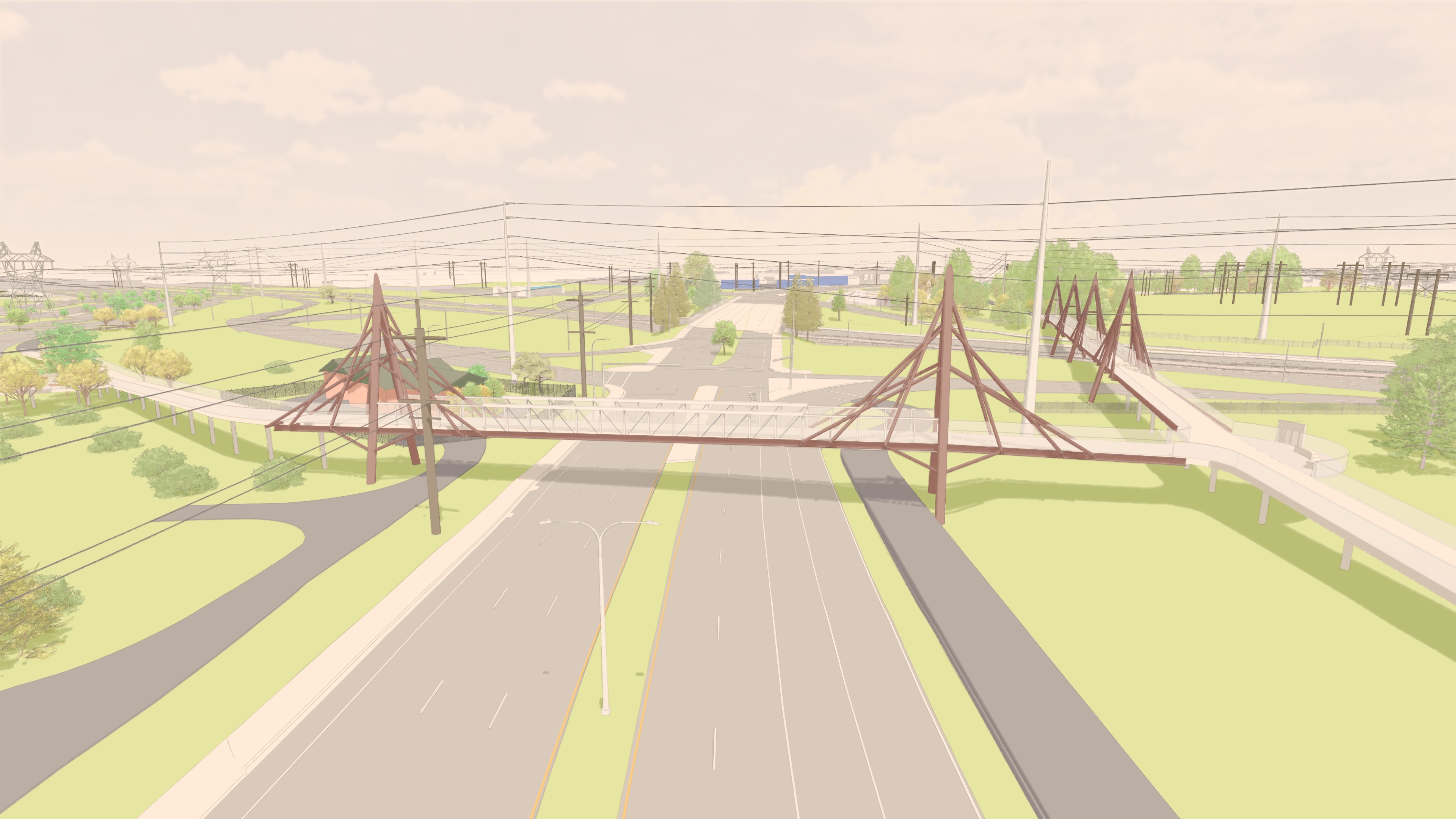

View of bridge over Cornelius Pass Road from the proposed trail

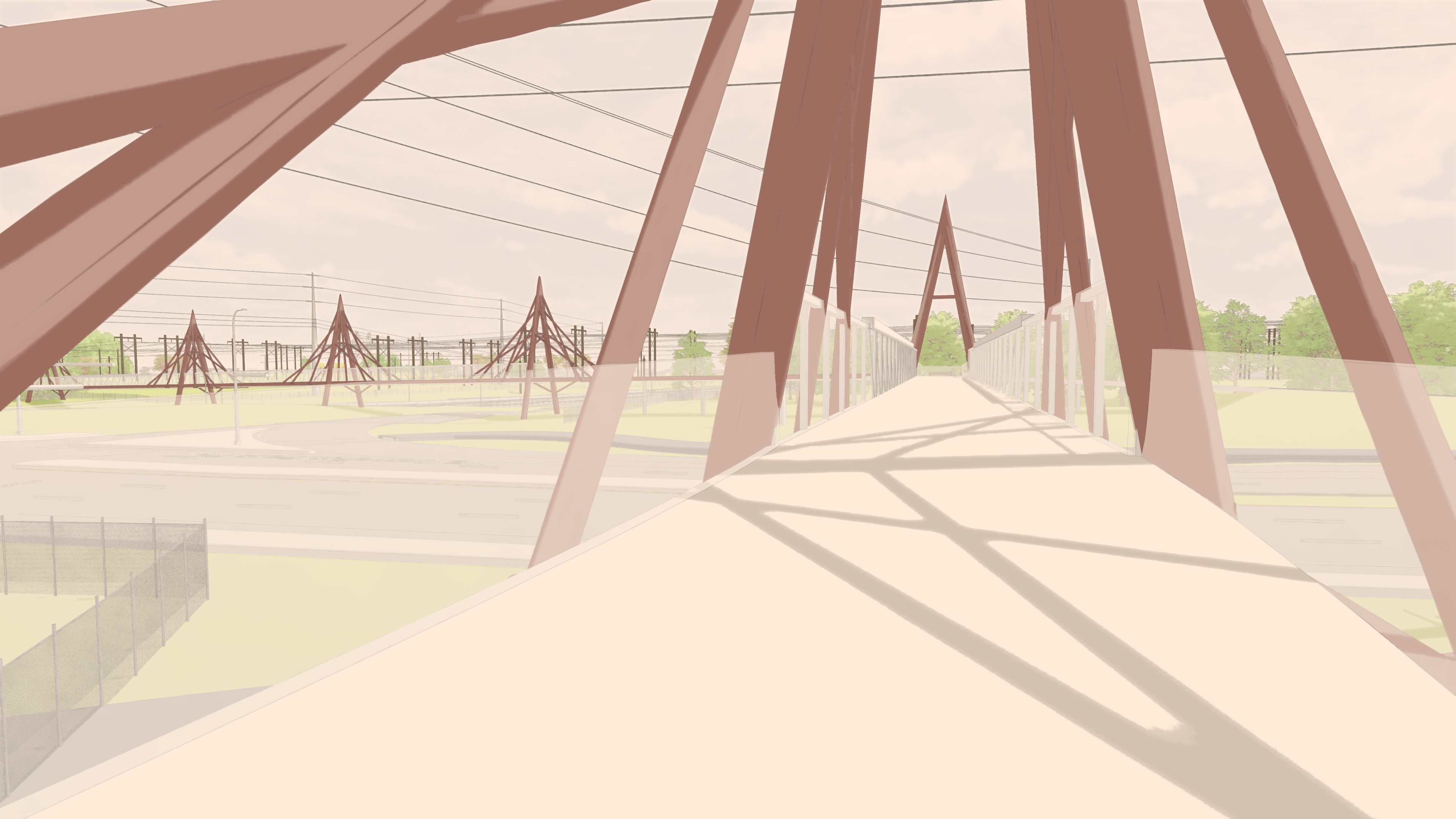

View of bridge with cantilever towers over Cornelius Pass Road from the perspective of the proposed trail.
